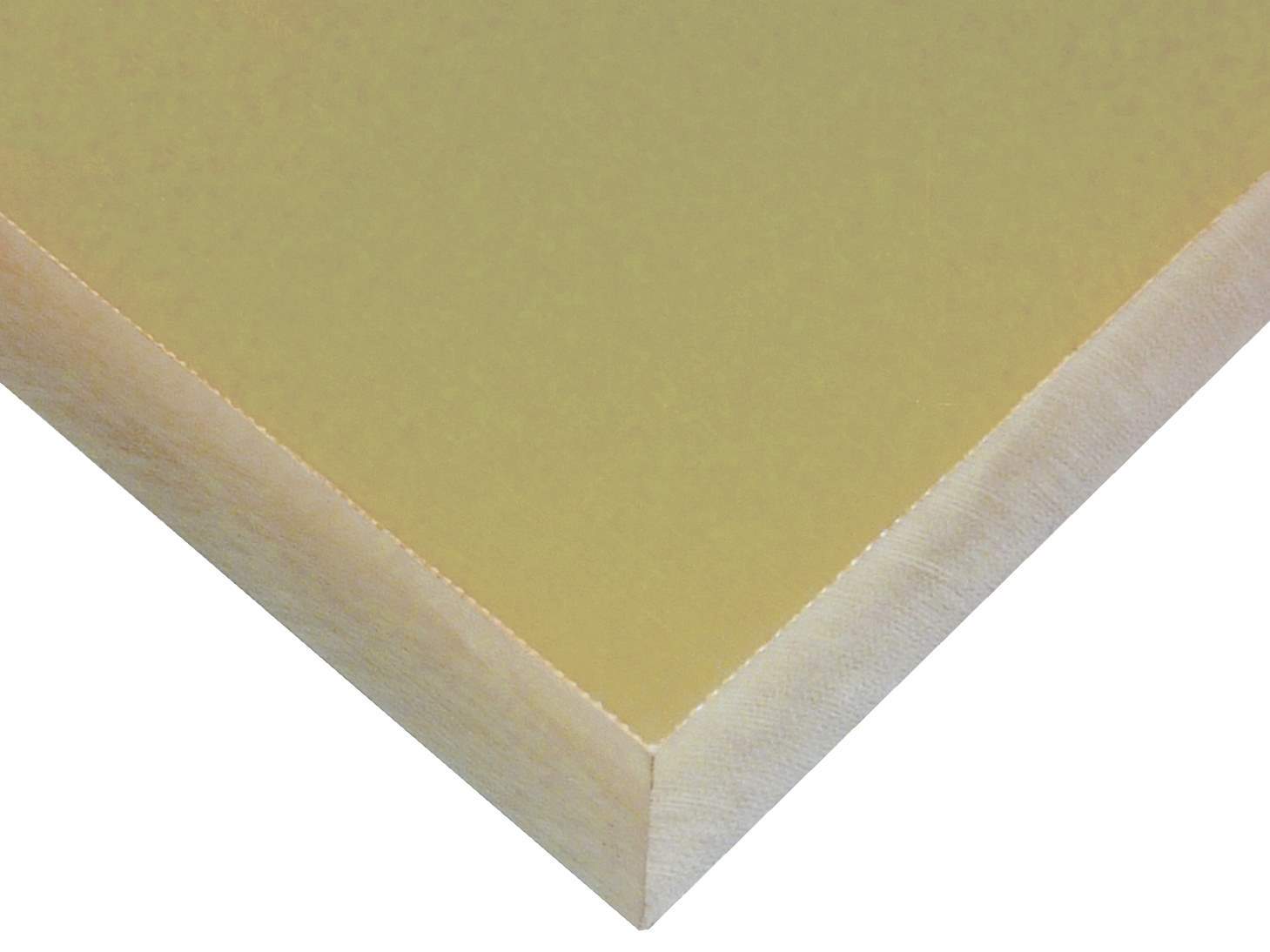

G10 / G11 Epoxy Glass Sheet
High-strength epoxy glass laminate family for demanding electrical insulation, structural support and elevated-temperature service conditions.
Product Description
G10 and G11 epoxy glass sheets are widely recognized export grades for customers who need reliable insulation and structural performance. G10 is suited to general high-strength insulation use, while G11 is positioned for higher thermal demand and more severe operating environments.
Basic Parameters
Product Specifications
- Available grades: NEMA standard G10 and G11 series, including F-class G11
- Thickness range: 0.1 mm to 200 mm
- Standard sheet sizes: 1020 * 1220 mm, 1020 * 2040 mm, 1220 * 2040 mm and 1220 * 2440 mm
- Maximum size: 1220 * 3100 mm
- Available colors: N color (water green), UV yellow and BK black, with custom colors available
- Product feature: Glass fiber reinforced with high mechanical strength and aligned with international NEMA standards
Application Scenarios
- Motor and generator insulation supports, end structures and structural liners
- Medium and high-voltage electrical insulation parts and support plates
- High-temperature industrial insulation where paper or lower grades are not sufficient
- New energy and power-system insulation components requiring stronger reliability
